EQUIPMENT TYPES

ABBA Freight Systems works with the best equipment to help make sure
your delivery arrives safely and securely.

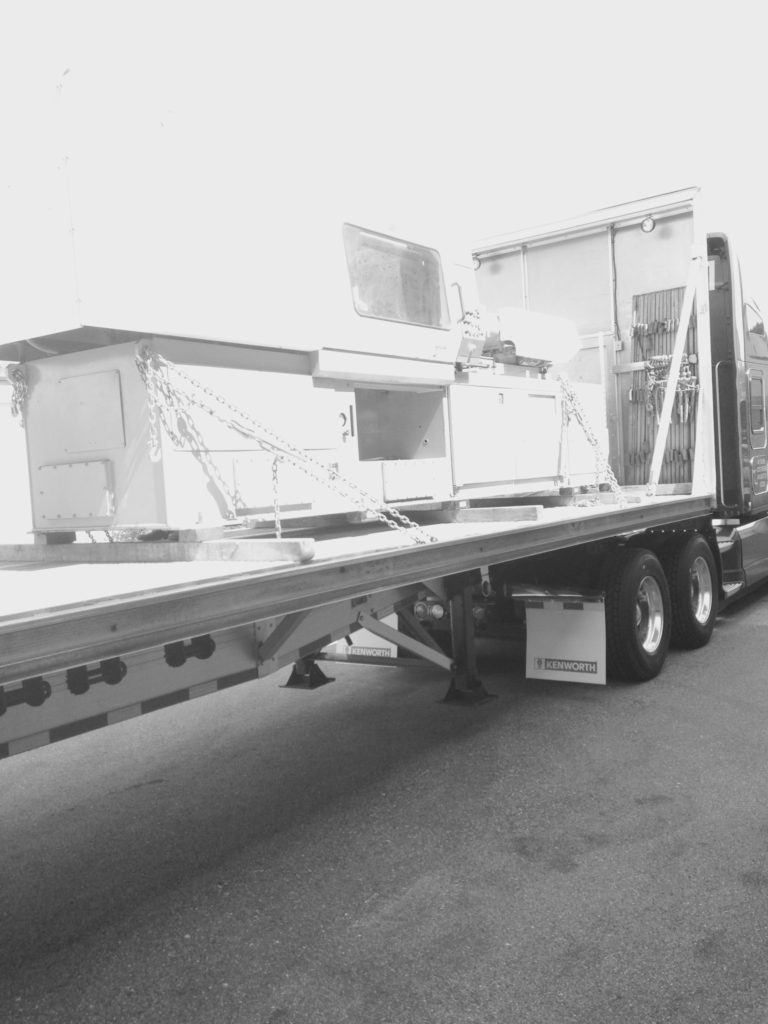

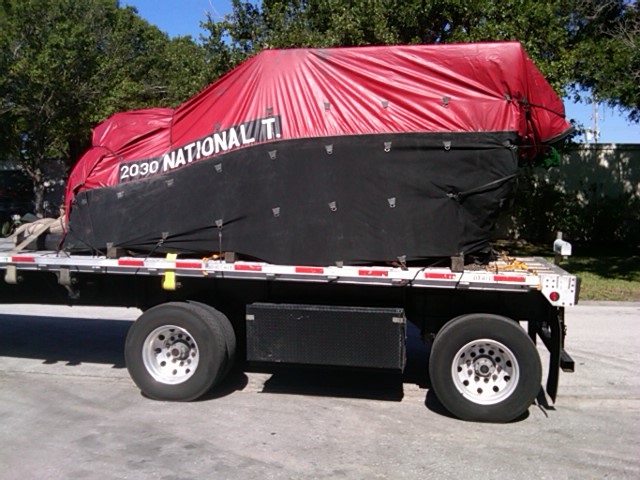

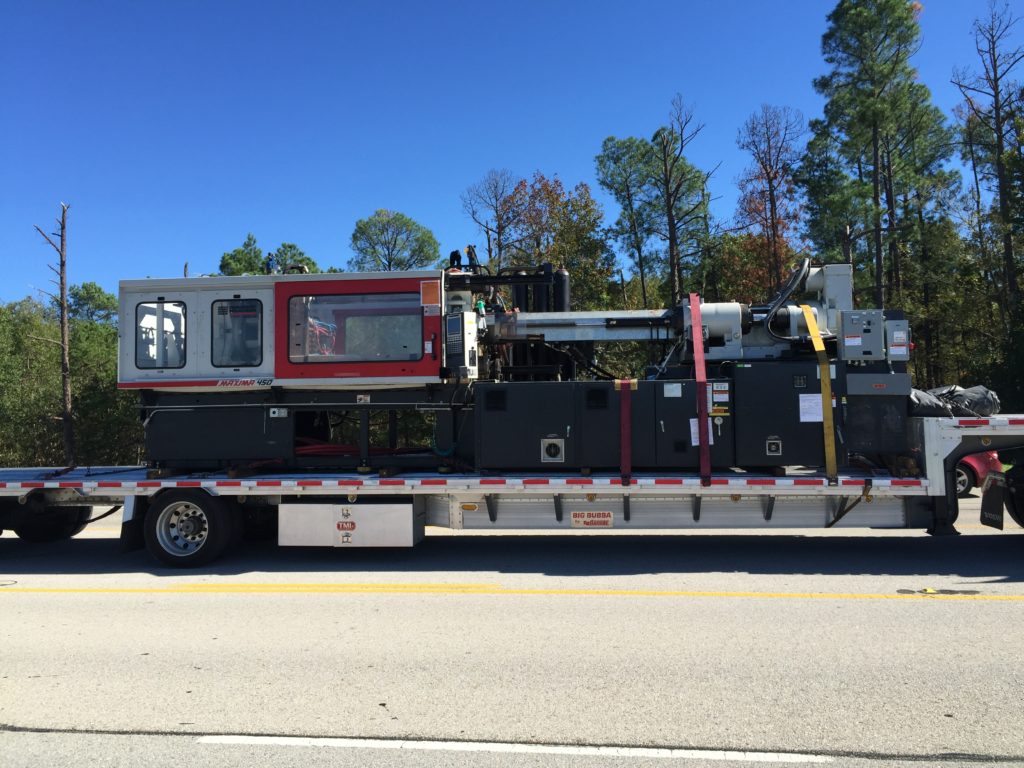

FLATBED
Standard freight weight: up to 48,000 lbs
Standard freight dimensions: up to L 48’x W 8’6” x H 8‘6” – 9’

SINGLE-DROP DECK/STEPDECK
Standard freight weight: up to 46,000 lbs
Standard freight dimensions main deck: up to L 38’ x W 8’6” x H 10’2“ – 10‘8”
Standard freight dimensions front deck: up to L 12’ x W 8‘6” x H 8’6” – 9’

DOUBLE-DROP DECK
Max freight weight: up to 160,000 lbs
Standard freight dimensions main deck: up to L 28’ x W 8’6” x H 11’6” – 12‘6”
Standard freight dimensions front deck: up to L 12’ x W 8’6“ x H 8’6” – 9’6”

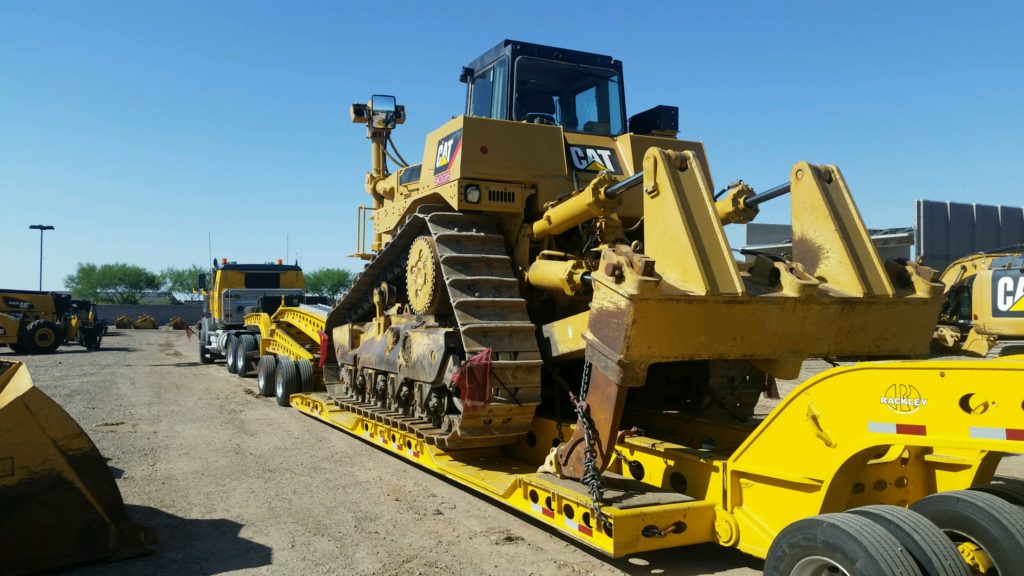

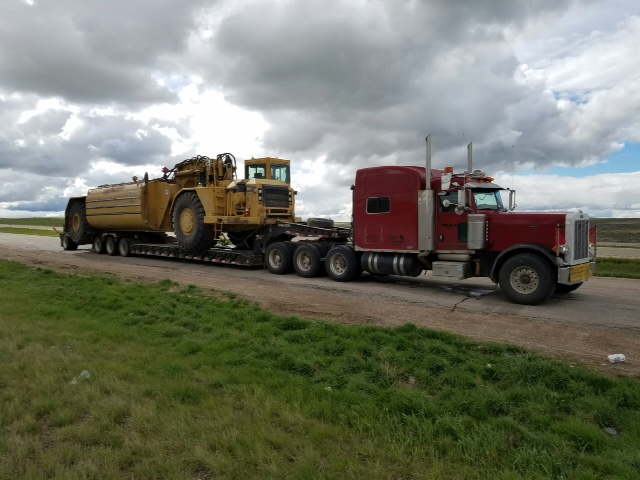

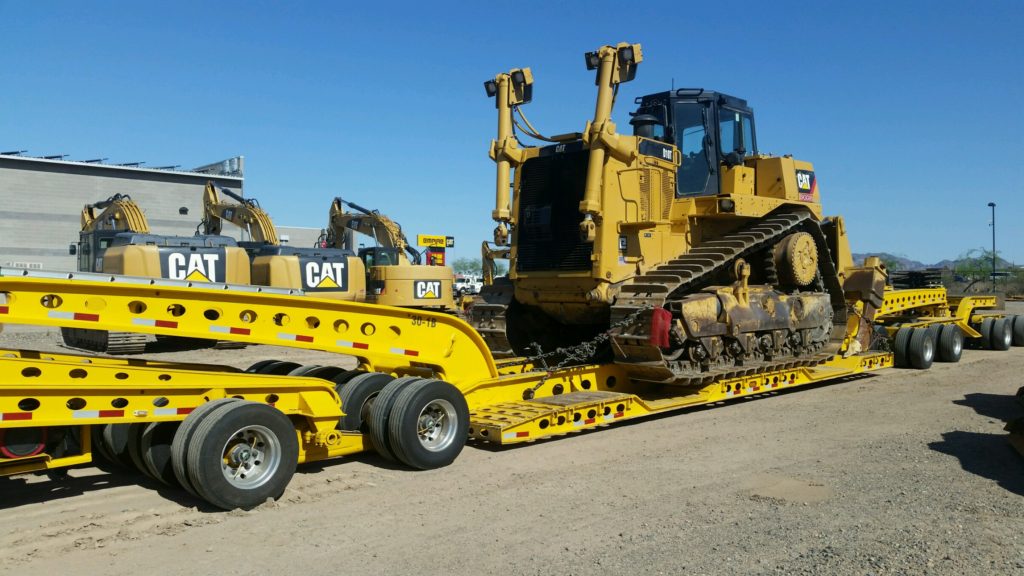

DOUBLE-DROP with DETACHABLE DECK (aka LOW BOY, RGN)
Max freight weight: upto 160,000 lbs
Standard freight dimensions main deck: upto L 28’ x W 8’6” x H 11‘6“ – 12’,6”
Standard freight dimensions front deck: upto L 12’ x W 8’6” x H 8’6” – 9’6”

ENCLOSED BOX TRAILER (aka DRY VAN)
Standard freight weight: upto 47,000 lbs
Standard freight dimensions: upto L 52’ 6” x W 8’5” x H 9’1”

STRETCH FLATBED
Standard freight weight: upto 42,000 lbs
Standard freight dimensions: upto L 45’-80’ x W 8’ x H 8’6’ – 9’

STRETCH SINGLE-DROP
Standard freight weight: up to 40,000 lbs
Standard freight dimensions main deck: up to L 38’-63’ x W 8’ x H 10’2” – 10‘8“
Standard freight dimensions top deck: up to L 12’ x W 8’ x H 8’6” – 9’

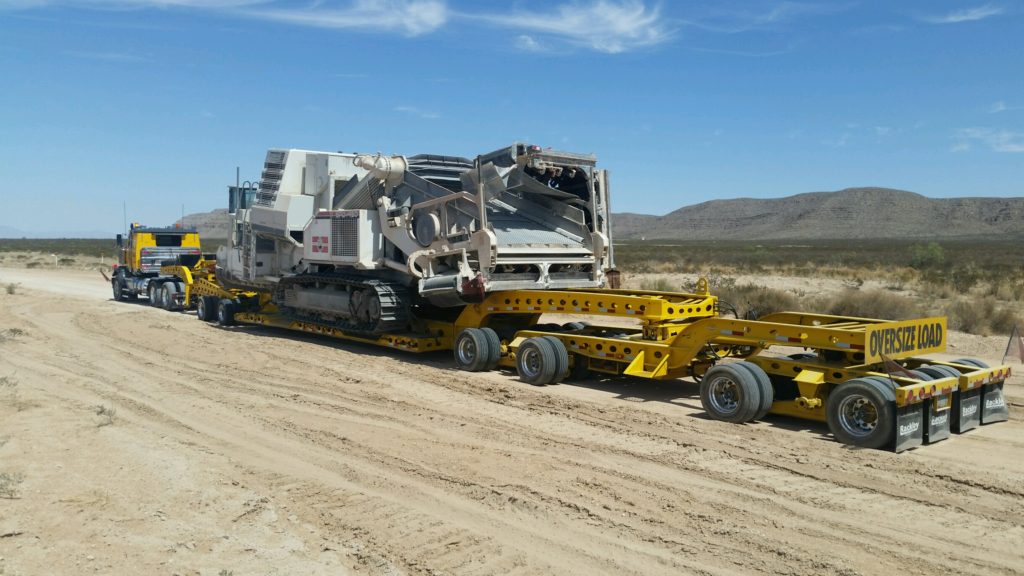

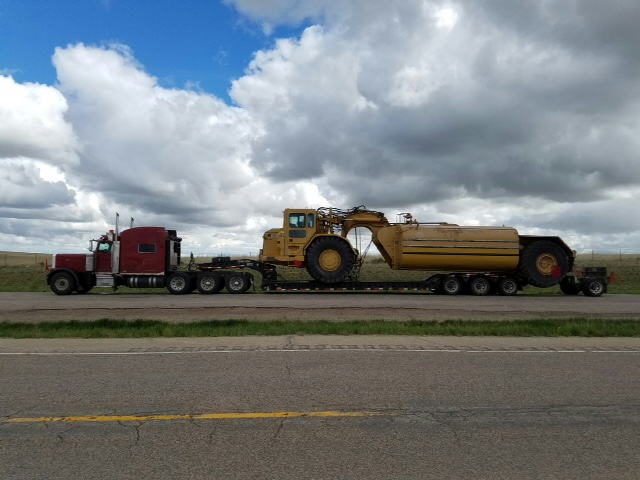

STRETCH DOUBLE-DROP DECK up to 13 AXLES
Max freight weight: up to 150,000 lbs
Standard freight dimensions main deck: up to L 29’-50’ x W 8’6” x H 11’6“ – 12‘6”
Standard freight dimensions front deck: up to L 12’ x W 8’6” x H 8’6” – 9‘
Standard freight dimensions rear deck: up to L 10’ x W 8’6” x H 10’2” – 10’8”
